11538642560 BEMWQ Thermostat Heat Management Module for BMW G02 G05 G06 G08 B48

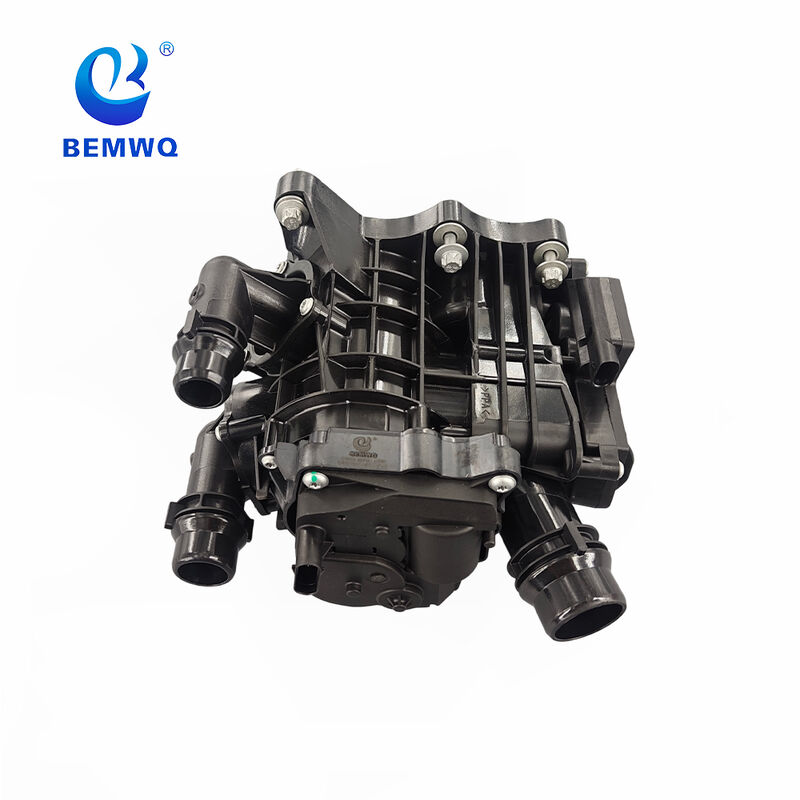

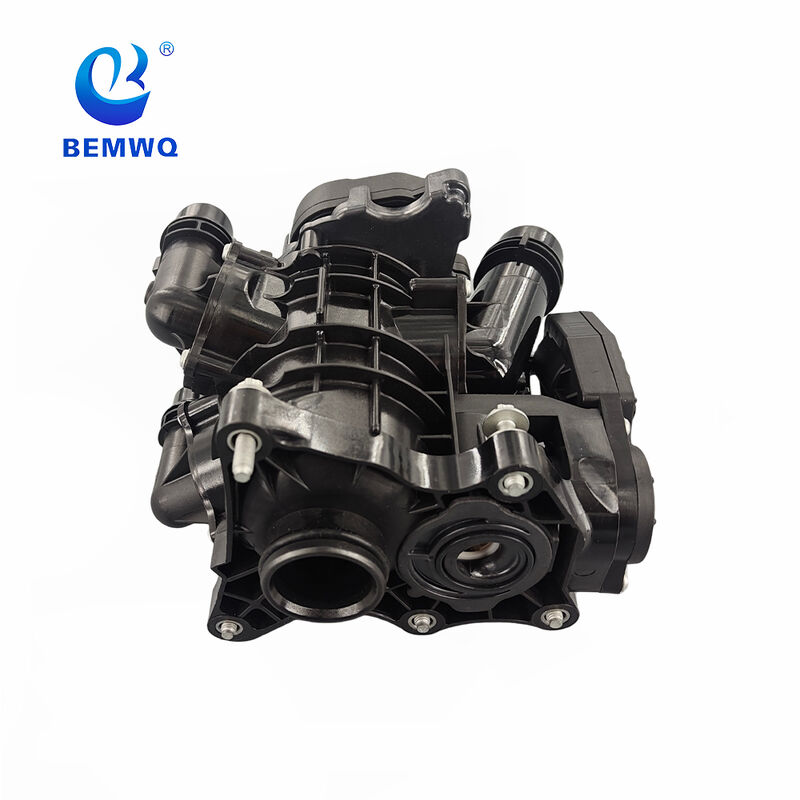

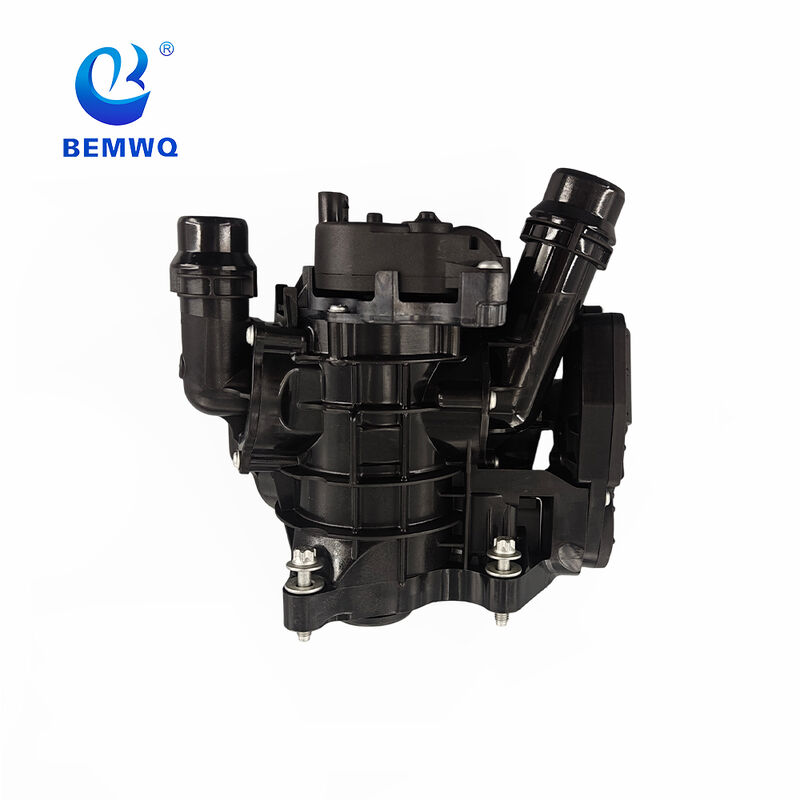

The BEMWQ Heat Management Module (Part No.: 11538642560) is an advanced, electronically controlled cooling system component designed for BMW vehicles equipped with the B48 2.0L turbocharged inline-4 engine. It is fully compatible with chassis models including the G02 (X4), G05 (X5), G06 (X6), G08 (X8/X5 xDrive45e), and other B48-powered platforms. Serving as a sophisticated replacement for traditional wax-based thermostats, this module utilizes an internal rotary valve to precisely regulate coolant flow and temperature across multiple engine circuits, ensuring optimal thermal management for performance, emissions, and fuel efficiency .

• Precision OEM Specification:​ Manufactured to match the original equipment standard 11538642560, ensuring exact housing dimensions, electrical connector pinout, and coolant port alignment for a seamless, direct-fit installation on the B48 engine without modification .

• Electrically Actuated Rotary Valve:​ Features a precision-driven rotary valve controlled by an electric motor and position sensor (often communicating via SENT protocol), allowing for infinite variability in coolant flow distribution rather than just simple open/close operations .

• Multi-Circuit Flow Control:​ Engineered to intelligently manage coolant delivery to various pathways—such as the cylinder head, engine block, radiator (large cycle), and heater core—independently, adapting flow rates based on real-time DME (engine control unit) demands .

• Integrated Sealing Solution:​ Typically supplied as a complete assembly including the necessary mounting gaskets and O-rings, designed to withstand high coolant pressures and constant thermal cycling for a leak-free seal against the engine block .

• Rapid Engine Warm-Up & Efficiency:​ Optimizes the engine's operating temperature by restricting coolant flow during cold starts, allowing the B48 to reach peak efficiency and emissions compliance faster, while also providing on-demand cooling during high-load scenarios to prevent overheating .

• Resolution of Common Failure Modes:​ Addresses frequent issues associated with aging original modules, such as internal valve sticking (causing overheating or slow warm-up), coolant leakage from the housing seams, and electrical faults that trigger dashboard warnings and diagnostic trouble codes (e.g., 20F220, 20F206) .

• Restored Climate Control & Performance:​ Eliminates related symptoms like a lack of cabin heat (if the valve sticks closed to the heater core), erratic temperature gauge readings, and reduced engine performance or limp mode caused by incorrect coolant temperature signaling .

• Cost-Effective Thermal Management Repair:​ Provides a dependable and high-quality economical alternative to dealership original parts for replacing a known wear-item on higher-mileage B48 engines, securing precise thermal control and protecting the engine from temperature-related stress .
